INFU KTCT® – IMPLANTABLE TITANIUM PORT
INFU KTCT® – IMPLANTABLE TITANIUM PORT WITH CATHETER POWER INJECTABLE. This is a range of implantable titanium ports available either individually or in kit form.
The INFUKT-CT ports are designed to allow the power injection of contrast during imaging acts.
This is a range of implantable titanium ports available either individually or in kit form.
The INFUKT-CT ports are designed to allow the power injection of contrast during imaging acts.
Power injection up to 325psi:
- Up to 5ml/s with 19 G needle
- X Ray Identification
- Up to 12,6 mPas contrast media
- Titanium port
- MRI conditional

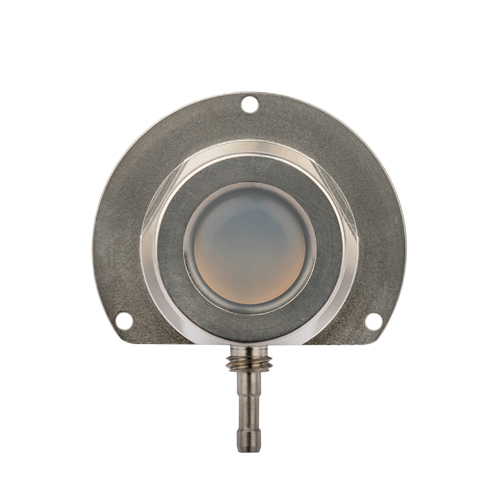

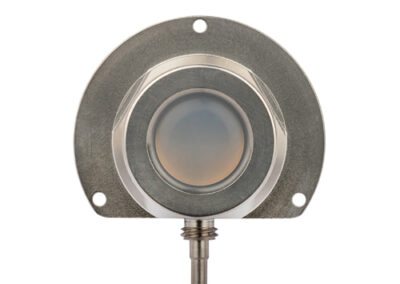

The port comprises a body completed with septum connected to a catheter via a locking system.
| Reference | Catheter | |||||
|---|---|---|---|---|---|---|
| Catheter Size (French) | LENGTH (MM) |
EXTERNAL DIAMETER (MM) |
INTERNAL DIAMETER (MM) |
INTERNAL VOLUME (ML) FOR 10(CM) |
FLOW (ML/MIN) at 1.4 PSI |
|
| IVT 1632 CT | 10F | 700 | 3.2 | 1.6 | 0.20 | 22G = 13 20G = 31 19G = 52 |
| IVP 1632 CT | 10F | 700 | 3.2 | 1.6 | 0.20 | 22G = 13 20G = 31 19G = 52 |
Packaging: 50 units per box Made in France
