Extension Sets

Home Extension Sets
HUBER NEEDLES® Extension Sets

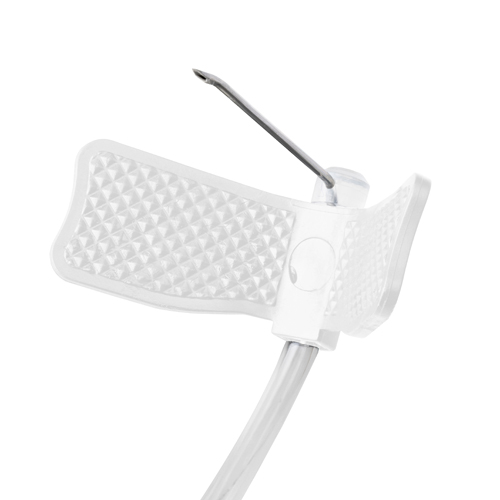

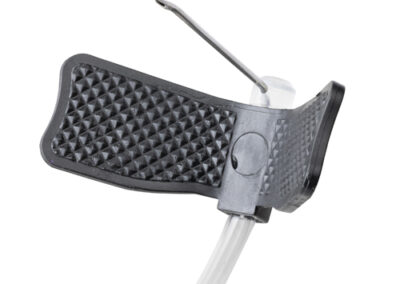

ISOMed offers a complete range of Huber Needles with extensions sets. Extension sets are individualy packaged in a rigid blister pack and sterilized with ethylene oxide.

  • Soft wings allow secure positioning
  • Non-siliconized needles minimze “back out”

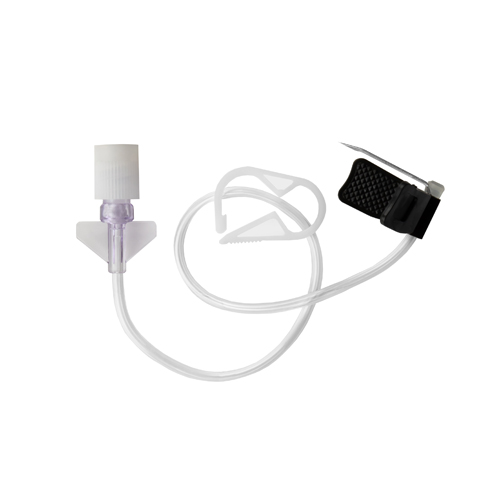

  • The tube, with a one-hand shut-off clamp, prevents the collaspe and kinking of the tube
  • The length of the extension line is 18 cm
  • The approximate priming volume is 0.2 ml

Extension sets are individualy packaged in a rigid blister pack and sterilized with ethylene oxide.

REF. COLOR CANULA EXTENSION LINE
    Length (mm) Diameter
(mm)
Length (Cm) Diameter
(mm)

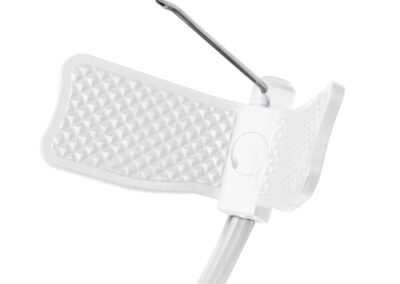

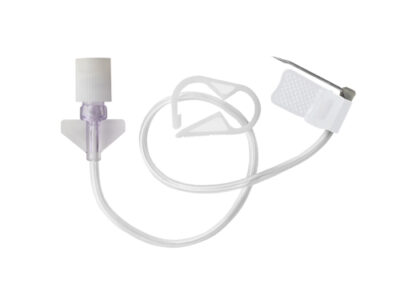

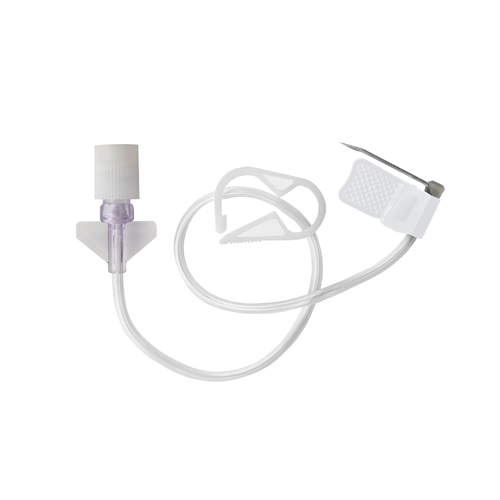

LR 1915 White 15 1,1 18 2,5
LR 1920 White 20 1,1 18 2,5
LR 1925 White 25 1,1 18 2,5
LR 1932 White 32 1,1 18 2,5
LR 1938 White 38 1,1 18 2,5

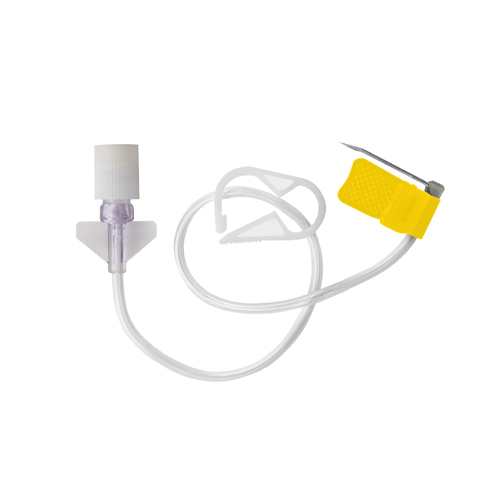

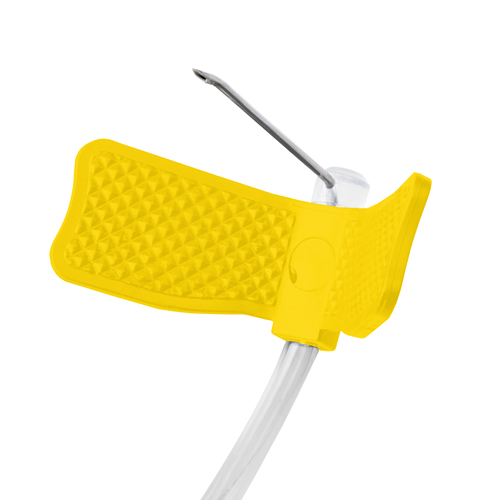

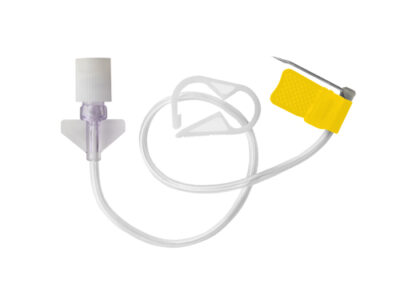

LR 2015 Yellow 15 0,9 18 2,5
LR 2020 Yellow 20 0,9 18 2,5
LR 2025 Yellow 25 0,9 18 2,5
LR 2032 Yellow 32 0,9 18 2,5
LR 2038 Yellow 38 0,9 18 2,5

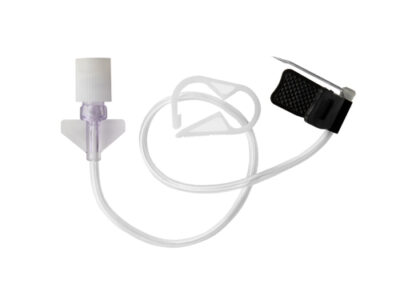

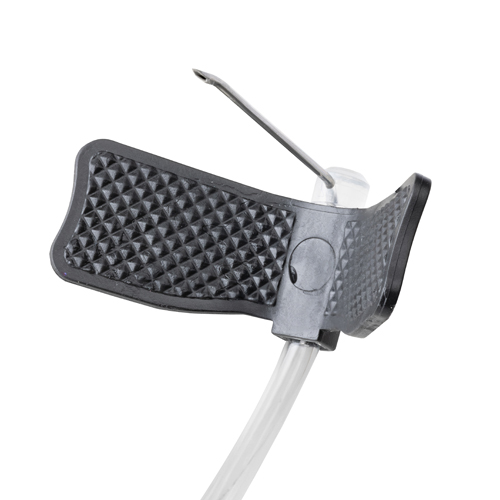

LR 2215 Black 15 0,7 18 2,5
LR 2220 Black 20 0,7 18 2,5
LR 2225 Black 25 0,7 18 2,5
LR 2232 Black 32 0,7 18 2,5
LR 2238 Black 38 0,7 18 2,5

The entire range is available with injection site: add Y to the reference; or with a secure injection site: add YS to the reference.

Packaging: 50 units per box – Made in France.
